Areas in Home Assistant is a logical grouping of devices and entities that are meant to match the areas (or rooms) in the physical world: your home.

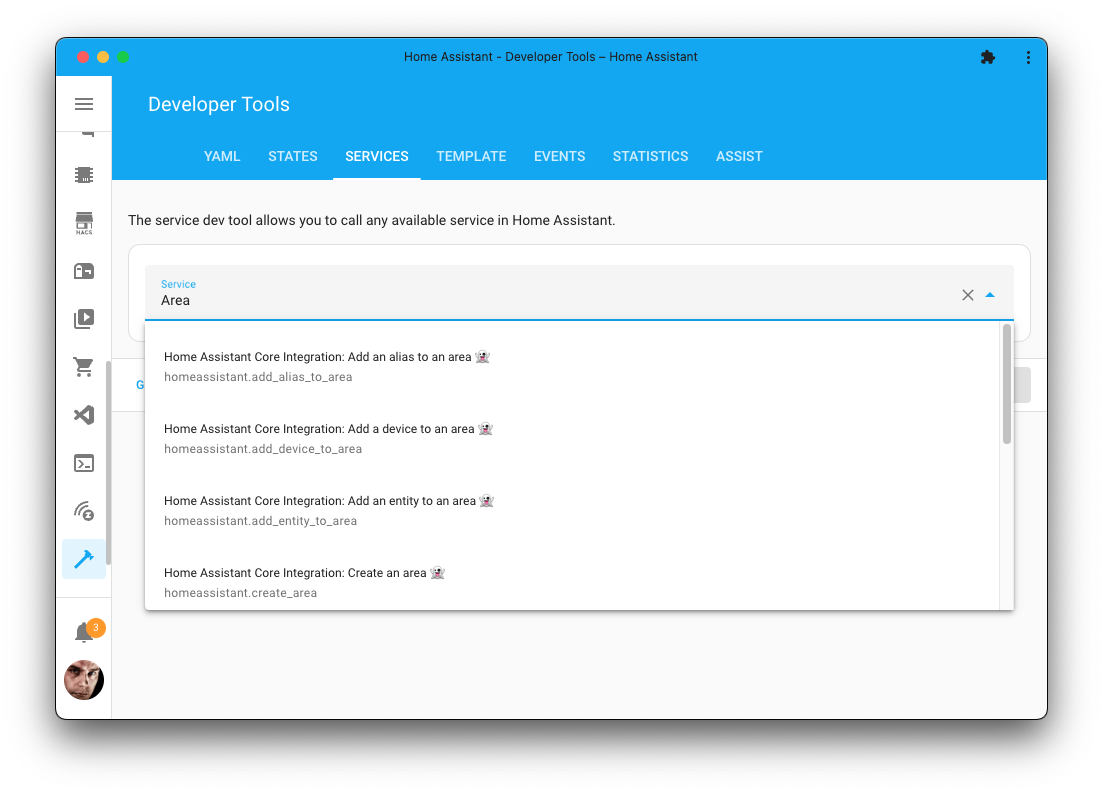

Spook provides services that allows you to manage and automate the areas in Home Assistant programatically. Great for creating “dynamic” areas, or for creating areas on the fly.
Services¶
Spook adds the following new service to your Home Assistant instance:

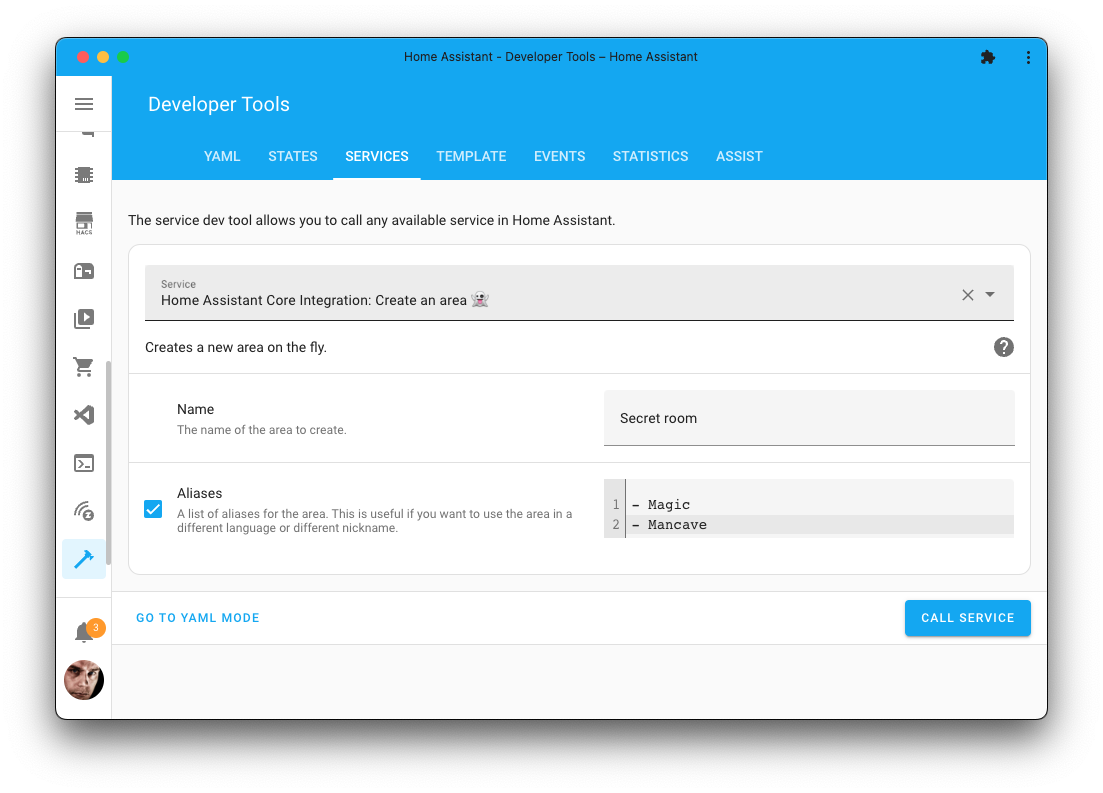

Create an area¶
Adds a new area to your Home Assistant instance.
| Service properties | |
|---|---|
| Service | Create an area 👻 |
| Service name | homeassistant.create_area |
| Service targets | No |
| Service response | No response |
| Spook's influence | Newly added service |
| Developer tools | Try this service
 |
| Service call data | |||
|---|---|---|---|
| Attribute | Type | Required | Default / Example |
name | string | Yes | Living room |
icon | string | No | mdi:sofa |
aliases | string | list of strings | No | ["Lounge", "Sitting area"] |
The use of aliases is helpful if you want to create an area with multiple names. For example, if you want to create an area called “Living room”, but also want to be able to refer to it as “Sitting area” or “Lounge”, you can add those names as aliases. This is used by Home Assistant Assist and Google Assistant.
Example service call in YAML
1 2 3 4 5 6 7service: homeassistant.create_area data: name: "Living room" icon: "mdi:sofa" aliases: - "Lounge" - "Sitting area"

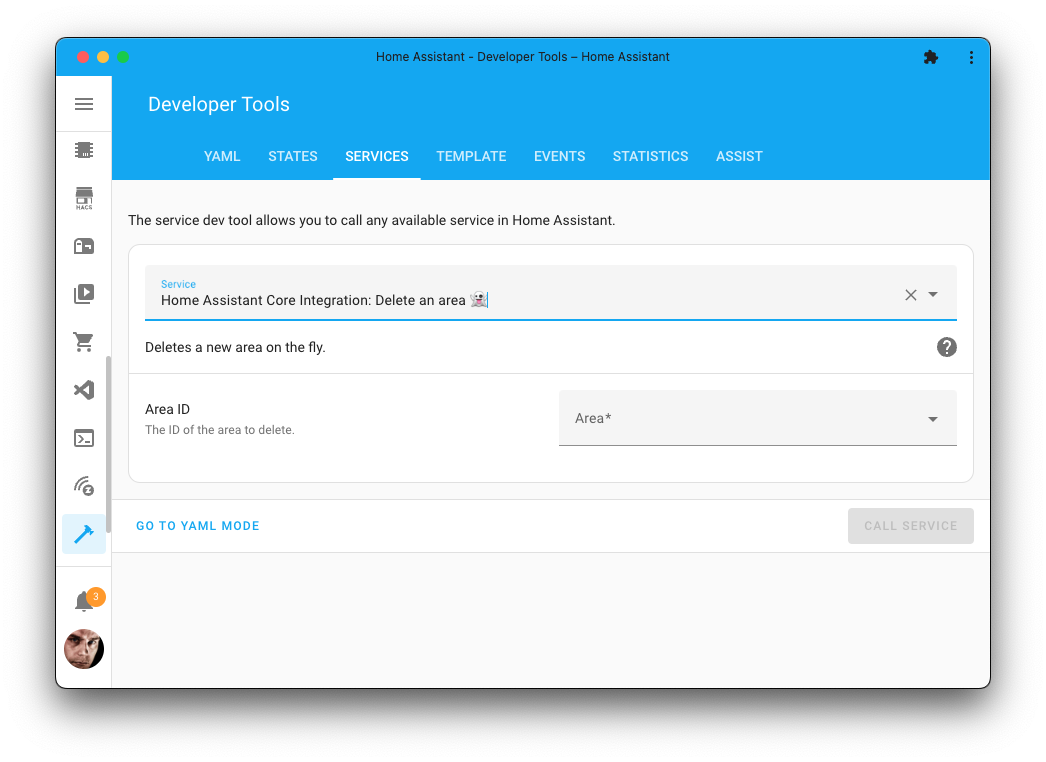

Delete an area¶
Adds a new area to your Home Assistant instance.
| Service properties | |
|---|---|
| Service | Delete an area 👻 |
| Service name | homeassistant.delete_area |
| Service targets | No |
| Service response | No response |
| Spook's influence | Newly added service |
| Developer tools | Try this service
|
| Service call data | |||
|---|---|---|---|
| Attribute | Type | Required | Default / Example |
area_id | string | Yes | living_room |
Getting an area ID from an area name
Not sure what the area_id of an area is? The area_id field also accepts templates. You can use this template to use the area’s name instead:
area_id: "{{ area_id('Living room') }}"That template will find the area ID of the area with the name “Living room”.
Example service call in YAML
1 2 3service: homeassistant.delete_area data: area_id: "living_room"
Same example, but using the area’s name instead of the area ID:
1 2 3service: homeassistant.delete_area data: area_id: "{{ area_id('Living room') }}"

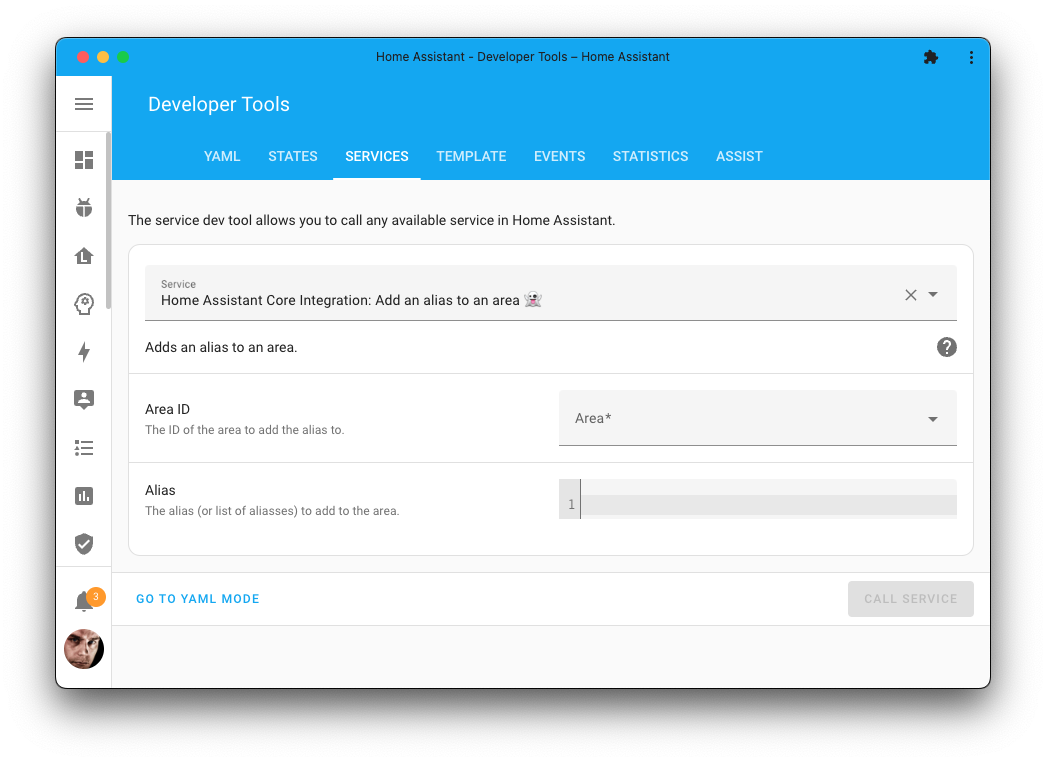

Add an alias to an area¶
Adds one or more aliases to an existing area. This service does not remove existing aliases, but adds the new ones to the existing ones.
As area aliases are used by voice assistants, you could add (and also remove) aliases to an area using automations, which allows you to make them available/unavailable programatically.
| Service properties | |
|---|---|
| Service | Add an alias to an area 👻 |
| Service name | homeassistant.add_alias_to_area |
| Service targets | No |
| Service response | No response |
| Spook's influence | Newly added service |
| Developer tools | Try this service
|
| Service call data | |||
|---|---|---|---|
| Attribute | Type | Required | Default / Example |
area_id | string | Yes | living_room |
aliases | string | list of strings | Yes | ["Lounge", "Sitting area"] |
Getting an area ID from an area name
Not sure what the area_id of an area is? The area_id field also accepts templates. You can use this template to use the area’s name instead:
area_id: "{{ area_id('Living room') }}"That template will find the area ID of the area with the name “Living room”.
Example service call in YAML
1 2 3 4 5 6service: homeassistant.add_alias_to_area data: area_id: "living_room" aliases: - "Lounge" - "Sitting area"
Same example, but using the area’s name instead of the area ID:
1 2 3 4 5 6service: homeassistant.add_alias_to_area data: area_id: "{{ area_id('Living room') }}" aliases: - "Lounge" - "Sitting area"

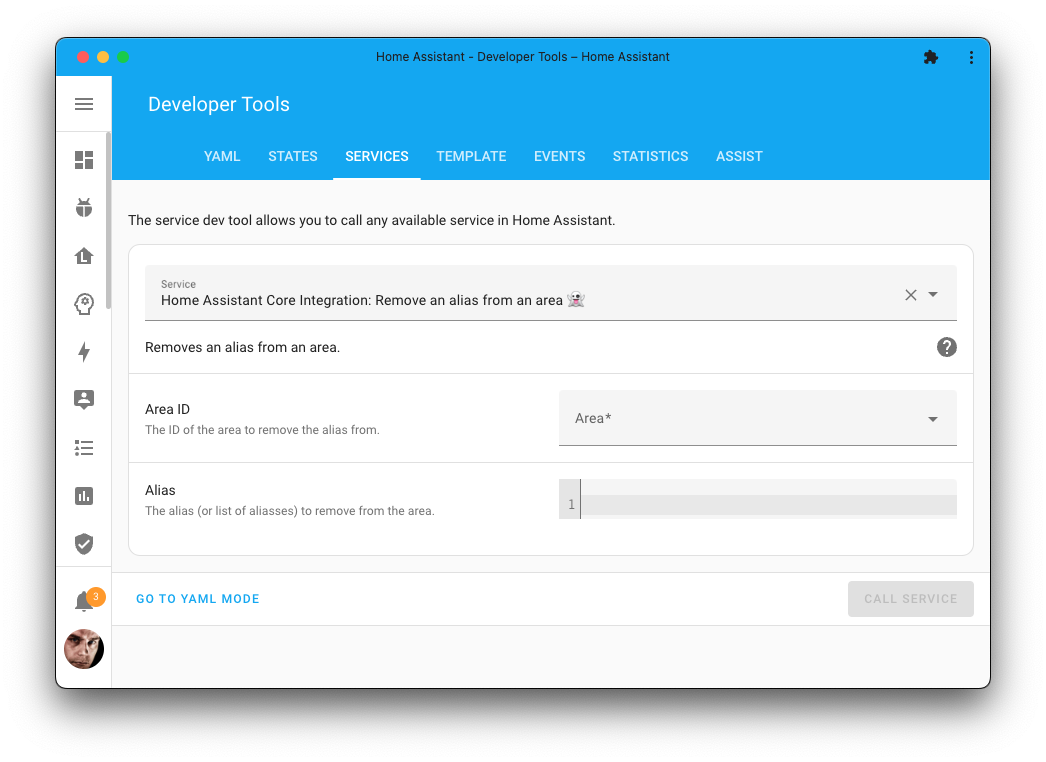

Remove an alias from an area¶
Removes one or more aliases from an existing area. This service will leave the other aliases intact.
As area aliases are used by voice assistants, you could remove (and also add) aliases to an area using automations, which allows you to make them available/unavailable programatically.
| Service properties | |
|---|---|
| Service | Add an alias to an area 👻 |
| Service name | homeassistant.remove_alias_from_area |
| Service targets | No |
| Service response | No response |
| Spook's influence | Newly added service |
| Developer tools | Try this service
|
| Service call data | |||
|---|---|---|---|
| Attribute | Type | Required | Default / Example |
area_id | string | Yes | living_room |
aliases | string | list of strings | Yes | ["Lounge", "Sitting area"] |
Getting an area ID from an area name
Not sure what the area_id of an area is? The area_id field also accepts templates. You can use this template to use the area’s name instead:
area_id: "{{ area_id('Living room') }}"That template will find the area ID of the area with the name “Living room”.
Example service call in YAML
1 2 3 4 5 6service: homeassistant.remove_alias_from_area data: area_id: "living_room" aliases: - "Lounge" - "Sitting area"
Same example, but using the area’s name instead of the area ID:
1 2 3 4 5 6service: homeassistant.remove_alias_from_area data: area_id: "{{ area_id('Living room') }}" aliases: - "Lounge" - "Sitting area"

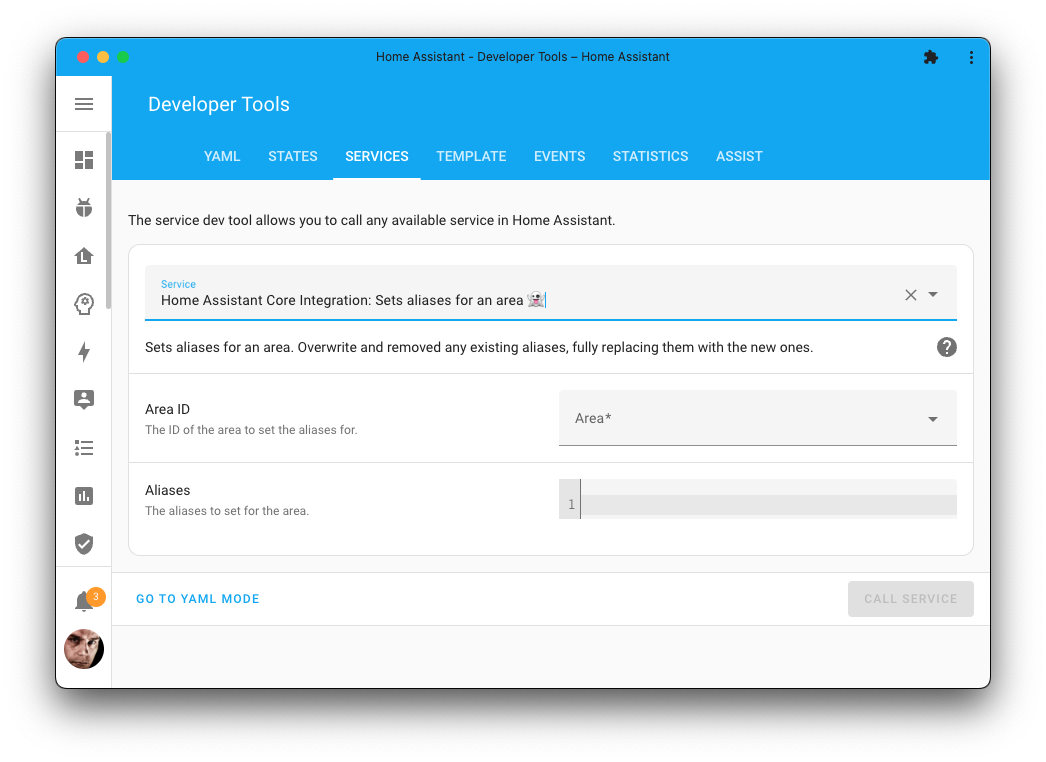

Set aliases for an area¶
Sets the aliases for an area. This service will overwrite/remove all existing aliases.
As area aliases are used by voice assistants, you could remove (and also add) aliases to an area using automations, which allows you to make them available/unavailable programatically.
| Service properties | |
|---|---|
| Service | Sets aliases for an area 👻 |
| Service name | homeassistant.set_area_aliases |
| Service targets | No |
| Service response | No response |
| Spook's influence | Newly added service |
| Developer tools | Try this service
|
| Service call data | |||
|---|---|---|---|
| Attribute | Type | Required | Default / Example |
area_id | string | Yes | living_room |
aliases | string | list of strings | Yes | ["Lounge", "Sitting area"] |
Getting an area ID from an area name
Not sure what the area_id of an area is? The area_id field also accepts templates. You can use this template to use the area’s name instead:
area_id: "{{ area_id('Living room') }}"That template will find the area ID of the area with the name “Living room”.
Example service call in YAML
1 2 3 4 5 6service: homeassistant.set_area_aliases data: area_id: "living_room" aliases: - "Lounge" - "Sitting area"
Same example, but using the area’s name instead of the area ID:
1 2 3 4 5 6service: homeassistant.set_area_aliases data: area_id: "{{ area_id('Living room') }}" aliases: - "Lounge" - "Sitting area"

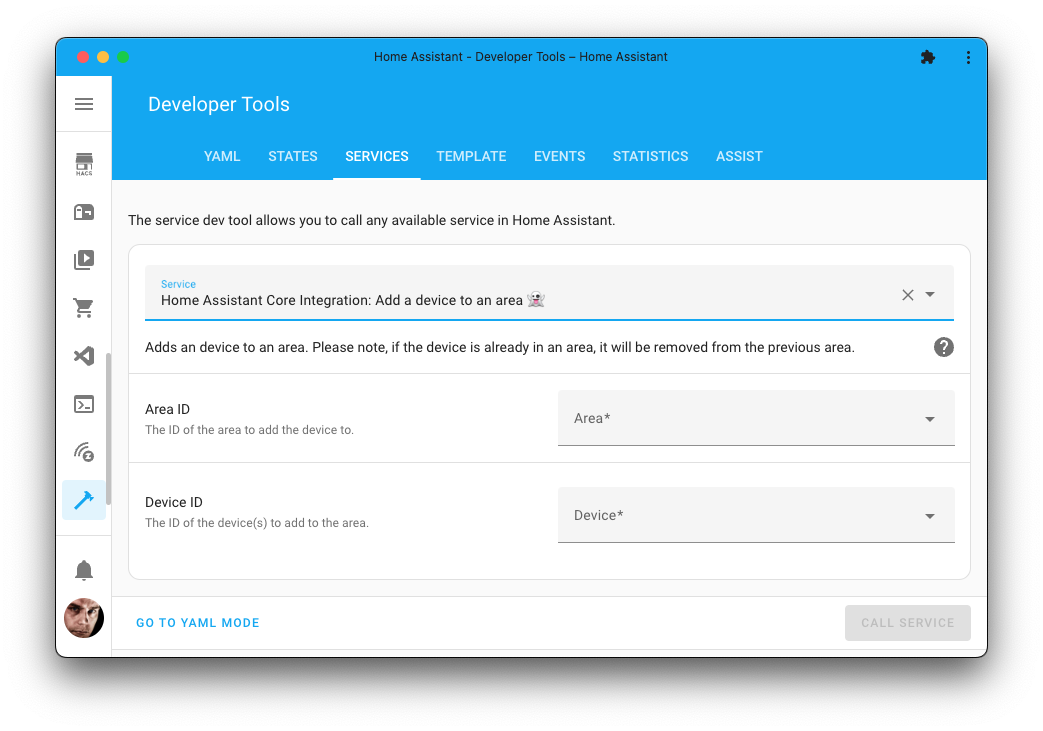

Add a device to an area¶
Adds one or more device(s) to an area. This service will leave the other devices in the area untouched.
| Service properties | |
|---|---|
| Service | Add a device to an area 👻 |
| Service name | homeassistant.add_device_to_area |
| Service targets | No |
| Service response | No response |
| Spook's influence | Newly added service |
| Developer tools | Try this service
|
| Service call data | |||
|---|---|---|---|
| Attribute | Type | Required | Default / Example |
area_id | string | Yes | living_room |
device_id | string | list of strings | Yes | dc23e666e6100f184e642a0ac345d3eb |
Getting an area ID from an area name
Not sure what the area_id of an area is? The area_id field also accepts templates. You can use this template to use the area’s name instead:
area_id: "{{ area_id('Living room') }}"That template will find the area ID of the area with the name “Living room”.
Finding a device ID
Not sure what the device_id of an your device is? There are a few ways to find it:
Use this service in the developer tools, in the UI select the device you want to add and select the Go to YAML mode button. This will show you the device ID in the YAML code.
Alternatively, you can visit the device page in the UI and look at the URL. The device ID is the last part of the URL, and will look something like this: dc23e666e6100f184e642a0ac345d3eb.
Example service call in YAML
1 2 3 4service: homeassistant.add_device_to_area data: area_id: "living_room" device_id: "dc23e666e6100f184e642a0ac345d3eb"
Same example, but using the area’s name instead of the area ID:
1 2 3 4service: homeassistant.set_area_aliases data: area_id: "{{ area_id('Living room') }}" device_id: "dc23e666e6100f184e642a0ac345d3eb"
To add multiple device at once, use a list of device IDs:
1 2 3 4 5 6service: homeassistant.add_device_to_area data: area_id: "living_room" device_id: - "dc23e666e6100f184e642a0ac345d3eb" - "df98a97c9341a0f184e642a0ac345d3b"

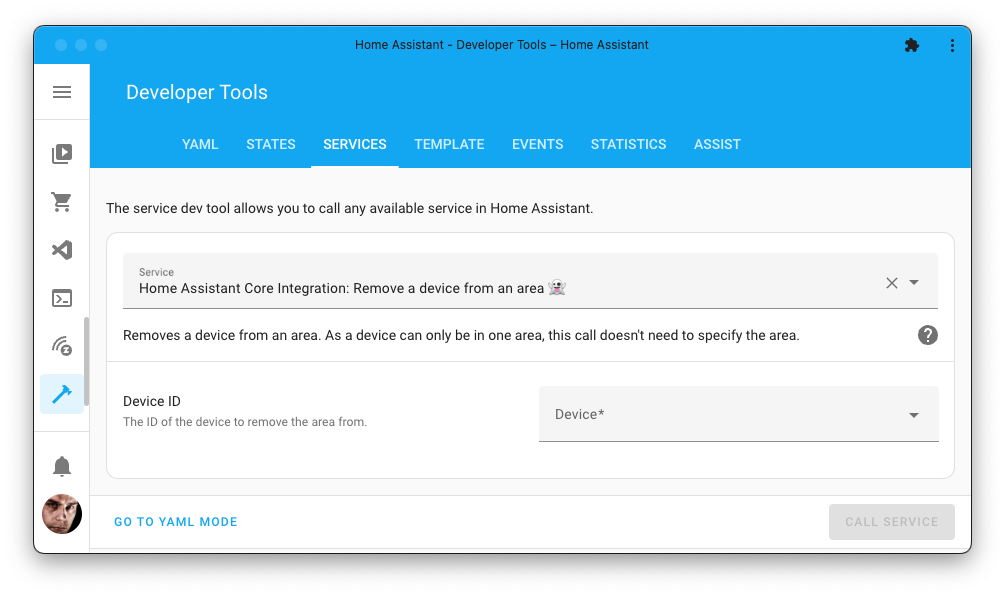

Remove a device from an area¶
Removes one or more device(s) from an area. This service will leave the other devices in the area untouched.
| Service properties | |
|---|---|
| Service | Remove a device from an area 👻 |
| Service name | homeassistant.remove_device_from_area |
| Service targets | No |
| Service response | No response |
| Spook's influence | Newly added service |
| Developer tools | Try this service
|
| Service call data | |||
|---|---|---|---|
| Attribute | Type | Required | Default / Example |
device_id | string | list of strings | Yes | dc23e666e6100f184e642a0ac345d3eb |
This service does not need an area ID
While this service is area related, it does not need to know the area ID. A device can only be in a single area at a time, so it will remove the device from the area it is in. Hence, it only needs to know the device you want to remove from an area.
Finding a device ID
Not sure what the device_id of an your device is? There are a few ways to find it:
Use this service in the developer tools, in the UI select the device you want to add and select the Go to YAML mode button. This will show you the device ID in the YAML code.
Alternatively, you can visit the device page in the UI and look at the URL. The device ID is the last part of the URL, and will look something like this: dc23e666e6100f184e642a0ac345d3eb.
Example service call in YAML
1 2 3service: homeassistant.remove_device_from_area data: device_id: "dc23e666e6100f184e642a0ac345d3eb"
To remove multiple devices at once, use a list of device IDs:
1 2 3 4 5service: homeassistant.remove_device_from_area data: device_id: - "dc23e666e6100f184e642a0ac345d3eb" - "df98a97c9341a0f184e642a0ac345d3b"

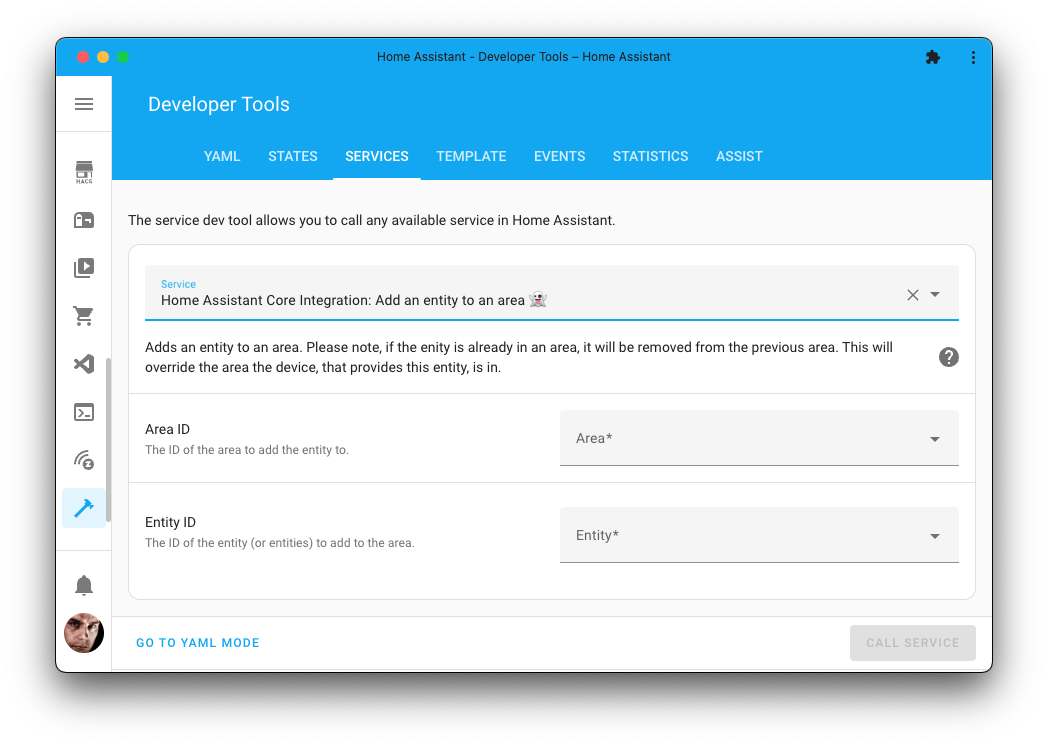

Add an entity to an area¶
Adds one or more entities to an area. This service will leave the other entities in the area untouched.
| Service properties | |
|---|---|
| Service | Add an entity to an area 👻 |
| Service name | homeassistant.add_entity_to_area |
| Service targets | No |
| Service response | No response |
| Spook's influence | Newly added service |
| Developer tools | Try this service
|
| Service call data | |||
|---|---|---|---|
| Attribute | Type | Required | Default / Example |
area_id | string | Yes | living_room |
entity_id | string | list of strings | Yes | light.spotlight |
Getting an area ID from an area name
Not sure what the area_id of an area is? The area_id field also accepts templates. You can use this template to use the area’s name instead:
area_id: "{{ area_id('Living room') }}"That template will find the area ID of the area with the name “Living room”.
Example service call in YAML
1 2 3 4service: homeassistant.add_entity_to_area data: area_id: "living_room" entity_id: light.spotlight
Same example, but using the area’s name instead of the area ID:
1 2 3 4service: homeassistant.add_entity_to_area data: area_id: "{{ area_id('Living room') }}" entity_id: light.spotlight
To add multiple entities at once, use a list of device IDs:
1 2 3 4 5 6service: homeassistant.add_entity_to_area data: area_id: "living_room" entity_id: - light.spotlight - light.ceiling

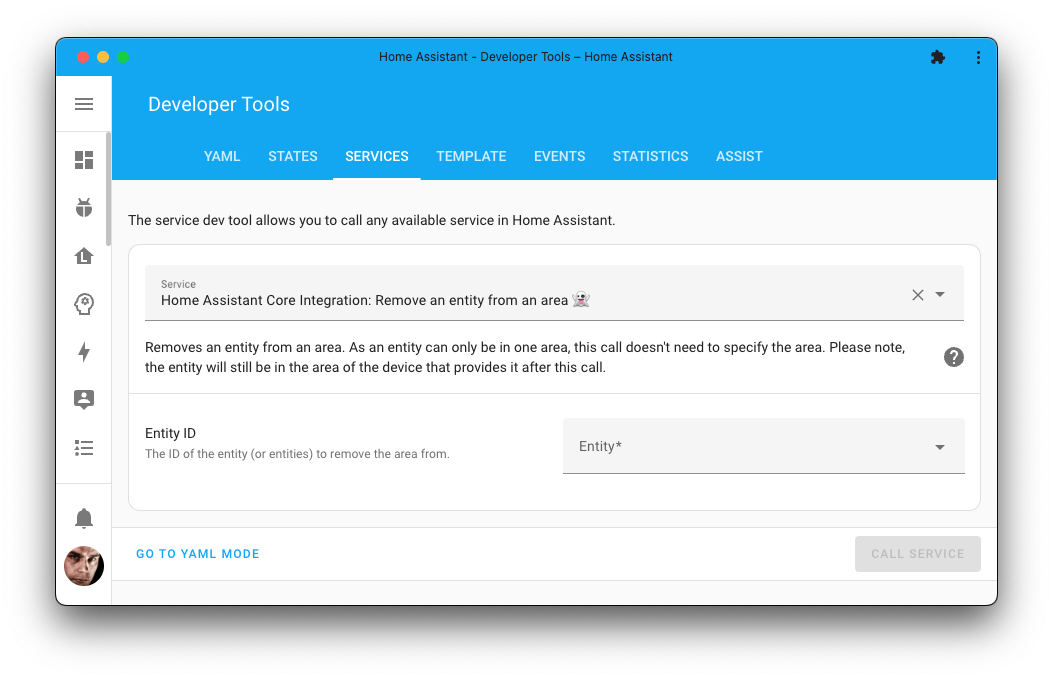

Remove an entity from an area¶
Removes one or more device(s) from an area. This service will leave the other devices in the area untouched.
| Service properties | |
|---|---|
| Service | Remove an entity from an area 👻 |
| Service name | homeassistant.remove_entity_from_area |
| Service targets | No |
| Service response | No response |
| Spook's influence | Newly added service |
| Developer tools | Try this service
|
| Service call data | |||
|---|---|---|---|
| Attribute | Type | Required | Default / Example |
entity_id | string | list of strings | Yes | light.spotlight |
This service does not need an area ID
While this service is area related, it does not need to know the area ID. An entity can only be in a single area at a time, so it will remove the entity from the area it is in. Hence, it only needs to know the entity you want to remove from an area.
Example service call in YAML
1 2 3service: homeassistant.remove_entity_from_area data: entity_id: light.spotlight
To remove multiple entities at once, use a list of entity IDs:
1 2 3 4 5service: homeassistant.remove_entity_from_area data: entity_id: - light.spotlight - light.ceiling
Blueprints & tutorials¶
There are currently no known blueprints or tutorials for the enhancements Spook provides for this integration. If you created one or stumbled upon one, please let us know in our discussion forums.
Features requests, ideas, and support¶
If you have an idea on how to further enhance this integration, for example, by adding a new service, entity, or repairs detection; feel free to let us know in our discussion forums.
Are you stuck using these new features? Or maybe you’ve run into a bug? Please check the page on where to go for help.
